What Is 6061-T6 Aluminum and Why Your Wheels Care

Quick Answer

6061-T6 is an aluminium alloy of roughly 97 percent aluminium blended with magnesium and silicon, then heat treated and artificially aged to reach around 310 MPa tensile strength and 276 MPa yield strength. It is the standard material for forged wheels because it bends under a hard impact instead of shattering. 6061-T6 aluminum wheels are not the strongest aluminium you can buy, and that is the entire point.

Why the alloy on the spec sheet matters more than the spoke design

Every wheel brand on the internet says the same three words: aerospace grade aluminium. Almost none of them tell you which alloy, which temper, or how you would ever check.

Here is the thing. Two wheels can look identical, weigh within 200 grams of each other, and carry the same price tag, while one is forged 6061-T6 and the other is a soft 6063 extrusion with a pretty finish. You will not see the difference at the shop. You will find out on a kerb along Nicoll Highway at 60 km/h.

This guide breaks down what 6061-T6 actually is, where it sits against 7075, 6063 and cast A356, what "aerospace grade" honestly means, and how to verify the claim before you pay.

What does 6061-T6 actually mean?

The name is two separate pieces of information stuck together. The number is the alloy. The letter and digit are the heat treatment.

The 6061 part

6061 sits in the 6xxx series, which means its main alloying elements are magnesium and silicon. The rough recipe is 0.8 to 1.2 percent magnesium, 0.4 to 0.8 percent silicon, a little copper and chromium, and the rest aluminium.

That chemistry gives you four things at once: good strength, high ductility, excellent corrosion resistance, and the ability to be heat treated. Very few alloys balance all four. 6061 is used in bicycle frames, marine fittings, scuba tanks, aircraft components and structural extrusions for exactly that reason.

Density is 2.70 g/cm3. Thermal conductivity is roughly 167 W/m.K, which matters more than most people realise when your brakes are dumping heat into the wheel on a mountain descent or after three hard laps at Sepang.

The T6 part

T6 is the temper designation. It means the metal was solution heat treated at around 530 degrees Celsius, quenched, then artificially aged at roughly 160 to 180 degrees for eight to ten hours.

Without T6, the same 6061 alloy in its annealed O condition has a yield strength near 55 MPa. With T6, it is around 276 MPa. Five times stronger, identical chemistry. The heat treatment is not a detail on the spec sheet. It is most of the strength.

This is also where cheap manufacturing cuts corners, because a shortened or skipped aging cycle saves hours of oven time and the finished wheel looks exactly the same.

How strong is 6061-T6 compared to other wheel materials?

Numbers first, then what they mean.

Read the elongation row again. That is the row that decides whether you drive home.

7075 is dramatically stronger on paper. It is also less forgiving. Under a sharp localised impact, a 7075 wheel is far more likely to crack through than to deform, and it carries a known susceptibility to stress corrosion cracking in humid, chloride-rich air. Singapore is humid, chloride-rich air with a coastline on three sides.

6061-T6 gives up peak strength to gain toughness. Hit a pothole hard enough and a 6061-T6 wheel typically bends at the lip. You feel a vibration, you inspect it, and in many cases it can be straightened. That is a warning, not a failure.

A356 cast is the material under most factory wheels. The strength gap is smaller than marketing suggests, but the elongation gap is enormous. Cast aluminium has around 3 to 5 percent elongation plus microscopic porosity from the pouring process. Those two things together are why cast wheels crack around the spoke junction when forged wheels bend.

The one to actually worry about is 6063. It is a soft architectural extrusion alloy. It machines beautifully, takes a gorgeous finish, and costs meaningfully less than 6061. A wheel machined from 6063 billet can still be called "forged" without technically lying. Its yield strength is 22 percent lower and its hardness is roughly 23 percent lower than 6061-T6.

Strength is only half the story on a heavy electric car, where the number stamped on the wheel matters as much as the alloy behind it. We cover why heavy EVs need a higher load rating in a separate guide.

Is 6061-T6 really aerospace grade aluminum?

Partly, and this is where the industry gets slippery.

6061-T6 is used in aerospace. It goes into fittings, brackets, fuel tank components, hydraulic lines, fuselage frames on smaller aircraft, and general structural hardware. It is a genuinely aerospace-qualified alloy with real material certification behind it.

What 6061 is not is primary airframe structure on a commercial jet. Wing skins, spars and pressurised fuselage sections on aircraft like the 787 or A350 use 2024, 7050, 7075 and aluminium-lithium alloys such as 2198. Those alloys are stronger and considerably more expensive.

So when a brand tells you their wheels use aerospace grade aluminium, the accurate translation is: an aluminium alloy that also has aerospace applications. The phrase is real. It is just far less exclusive than the marketing implies, because roughly every serious forged wheel on earth uses the same alloy family.

The claim that should actually influence your buying decision is not the alloy name. It is whether the manufacturer can produce the mill certificate that proves it.

Why forging matters as much as the alloy

Alloy and process are two separate variables and both have to be right.

Casting pours molten aluminium into a mould. As it cools, the grain structure forms randomly and gas gets trapped as porosity. Those voids are stress concentrators, and cracks start at stress concentrators.

Flow forming starts with a cast blank and uses rollers to compress and stretch the barrel while spinning. The barrel gets denser and stronger. The face and spokes are still cast.

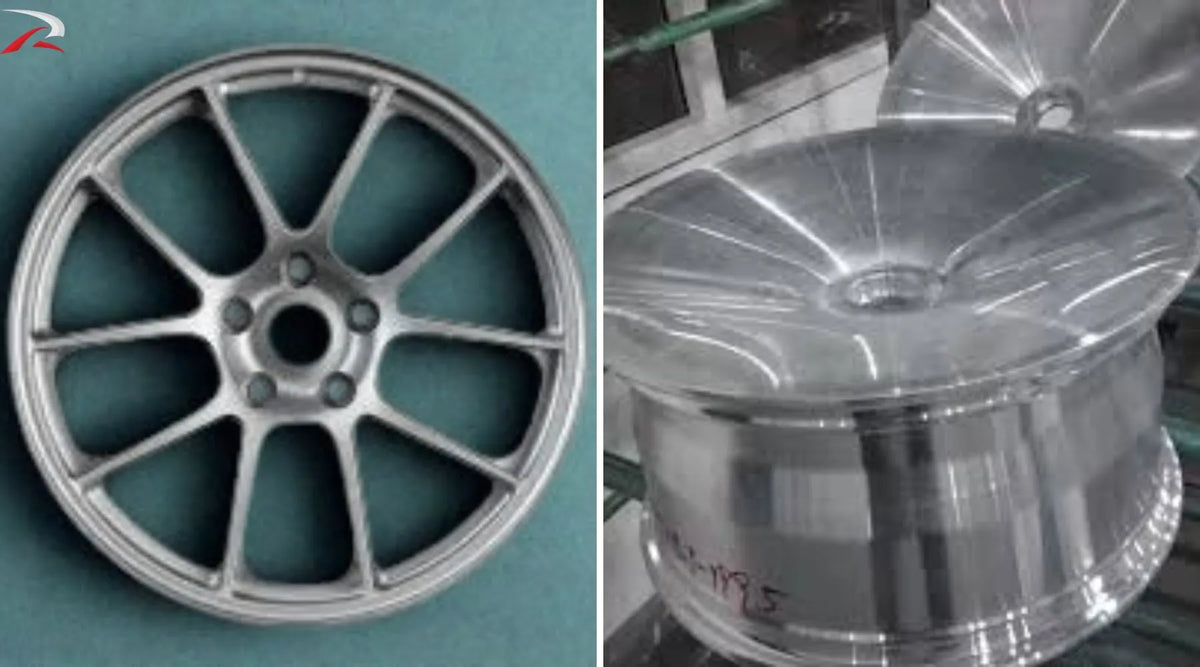

Forging takes a solid 6061-T6 billet and squeezes it under thousands of tonnes of pressure. The metal never melts. Its grain flow is compressed and redirected to follow the shape of the wheel, running continuously through the spokes and into the rim rather than being cut across by machining. Porosity is eliminated because there was never a pour.

The result is a wheel where you can remove material and still meet load ratings. That is where the weight saving comes from, and it is why we cover the full process on our manufacturing page.

We broke the three processes down with pricing in Forged vs Cast vs Flow Formed rim prices in Singapore.

What does the weight saving actually buy you?

Wheels are unsprung mass, and unsprung mass is the most expensive weight on a car. A typical set of forged 6061-T6 wheels saves 3 to 6 kg per corner against factory cast wheels, depending on size and design.

Because that mass is also rotating, it counts for more than static weight. Rotational inertia means a kilogram removed from the rim behaves closer to 1.3 to 2 kg removed from the chassis under acceleration and braking. We ran the physics on that in The rotational mass hack.

What you feel on the road is faster steering response, a suspension that stays in contact with broken tarmac instead of skipping over it, shorter braking distances, and on an EV, measurably less energy spent on every acceleration cycle.

How to verify a wheel is really 6061-T6

This is the part nobody publishes, so here it is.

1. Ask for the material certificate. Any legitimate forged wheel manufacturer can produce a mill certificate from the billet supplier showing alloy composition and heat treatment batch. If a seller cannot or will not produce one, that answers your question.

2. Ask which alloy, not which grade. "Aerospace grade" is not an answer. "6061-T6" is. If the reply stays vague across two follow-ups, assume 6063.

3. Check the hardness. A workshop with a portable Brinell or Rockwell tester can check in minutes. 6061-T6 should read around 95 HB. 6063-T6 reads around 73 HB. That gap is not subtle.

4. Use a handheld XRF spectrometer for certainty. Many metal fabricators in Singapore have one. It reads the actual elemental composition of the alloy in seconds and settles the argument permanently.

5. Weigh it. Compare the actual weight against the published spec for that size. A wheel considerably heavier than its claimed weight has had material added back somewhere, and that usually means the design needed it.

What this means specifically in Singapore

Three local factors change the calculation.

Humidity and salt exposure are constant here. 6061-T6 has excellent corrosion resistance, which is one of the practical reasons it beats 7075 for a street wheel in this climate. The finish still matters, which is why we wrote about powder coating versus painting.

Road surfaces are generally good, but expansion joints, speed humps and multi-storey carpark ramps are where wheels actually die. A bent 6061-T6 wheel is a repairable problem. A cracked cast or 6063 wheel is a replacement.

Then there is compliance. LTA's guidance on sports rims is straightforward. Rim sizing should follow the car manufacturer's recommendations, rims and tyres should not protrude laterally from the vehicle body, and the overall rolling radius of the wheel and tyre package should stay the same as original. Material has no bearing on your inspection. Fitment does. Official guidance is on LTA OneMotoring, and getting offset and rolling radius right at the specification stage avoids the problem entirely.

Related reading:

• Best Forged Wheels in Singapore 2026: A Technical Buying Guide

• How to spec the perfect forged wheels for your car

• Choosing Monoblock Forged Wheels: Street and Track

• BMW G80 M3 Wheel Fitment Guide 2026

• EV Wheel Load Ratings: Why 750kg Per Corner Changes Everything

• Where Singapore Drivers Get Wheels Wrong: 7 Local Mistakes

Author Bio

Bryan, RRT Forged

Bryan Founder and CEO at RRT Forged in Singapore on custom forged wheel specification, covering billet selection, fitment geometry and brake clearance for street and track builds.

Connect:

• Website: https://www.rrtforged.com

• Instagram: https://www.instagram.com/rrtforged/

• WhatsApp: https://wa.me/6591725031

Frequently Asked Questions

Is 6061-T6 aluminum good for wheels?

Yes. 6061-T6 is the industry standard for forged wheels because it balances strength with ductility. At around 276 MPa yield strength and 10 to 12 percent elongation, it holds precise forged geometry while still deforming rather than fracturing under impact, which is the safer failure mode for a road wheel.

Which is stronger, 6061 or 7075?

7075-T6 is stronger, with roughly 572 MPa tensile against 310 MPa for 6061-T6. It is also more brittle and more vulnerable to stress corrosion cracking. For a wheel that faces kerbs, potholes and humid coastal air, 6061-T6's toughness is worth more than 7075's peak strength.

What is the difference between 6061 and 6061-T6 aluminum?

They are the same alloy in different conditions. 6061 describes the chemistry. T6 describes the heat treatment: solution treated, quenched and artificially aged. Untreated 6061 has a yield strength near 55 MPa. In the T6 temper, it reaches around 276 MPa.

Can 6061 aluminum rust?

Aluminium does not rust, because rust is iron oxide. 6061 forms a thin aluminium oxide layer that protects the metal underneath, and its corrosion resistance is rated excellent. It can still suffer galvanic corrosion where it contacts dissimilar metals, and pitting in salt-heavy environments, which is why the finish and the fasteners matter.

How to tell if aluminum is 6061 or 7075?

You cannot tell by looking. The reliable methods are a mill certificate from the supplier, a handheld XRF spectrometer reading the elemental composition, or a hardness test, where 6061-T6 reads around 95 HB against roughly 150 HB for 7075-T6.

Is 6061-T6 aluminum aerospace grade?

It is an aerospace-qualified alloy used in aircraft fittings, frames and structural hardware. It is not the alloy used for primary airframe structure on large commercial aircraft, which relies on 2024, 7050, 7075 and aluminium-lithium alloys. The phrase aerospace grade is accurate but far less exclusive than most wheel marketing suggests.

How much weight can 6061-T6 aluminum hold?

For a wheel, the number that matters is the load rating stamped on the wheel itself, not the raw alloy strength, because load capacity depends on the design, spoke count, barrel thickness and testing standard. Ask for the per-wheel load rating in kilograms and confirm it exceeds your vehicle's corner weight with a margin.

Are 6061-T6 aluminum wheels worth the extra cost?

If you track the car, run an EV where rotational mass costs you range, drive on rough surfaces, or want a wheel that bends instead of cracking, yes. If the car is a low-mileage daily on good roads and budget is the binding constraint, a quality flow-formed wheel is a defensible choice.

What to do before you buy

Ask three questions and the noise disappears. Which alloy and temper, exactly? Can I see the mill certificate? What is the per-wheel load rating?

A manufacturer who answers all three without hesitation is telling you something about how the wheel was made. One who reaches for "aerospace grade" a third time is telling you something too.

The fitment side of the same checklist is covered in seven mistakes to avoid before you order, from centre bore to the fitting bay.

If you want a set specified properly for your car, including offset, brake clearance and rolling radius that keeps you compliant, start with a custom build consultation or look at what is already in the Extreme Series.
